Build custom arrays with LNX

One Way

Two Way

Four Way
The Good Shit

Quick Build

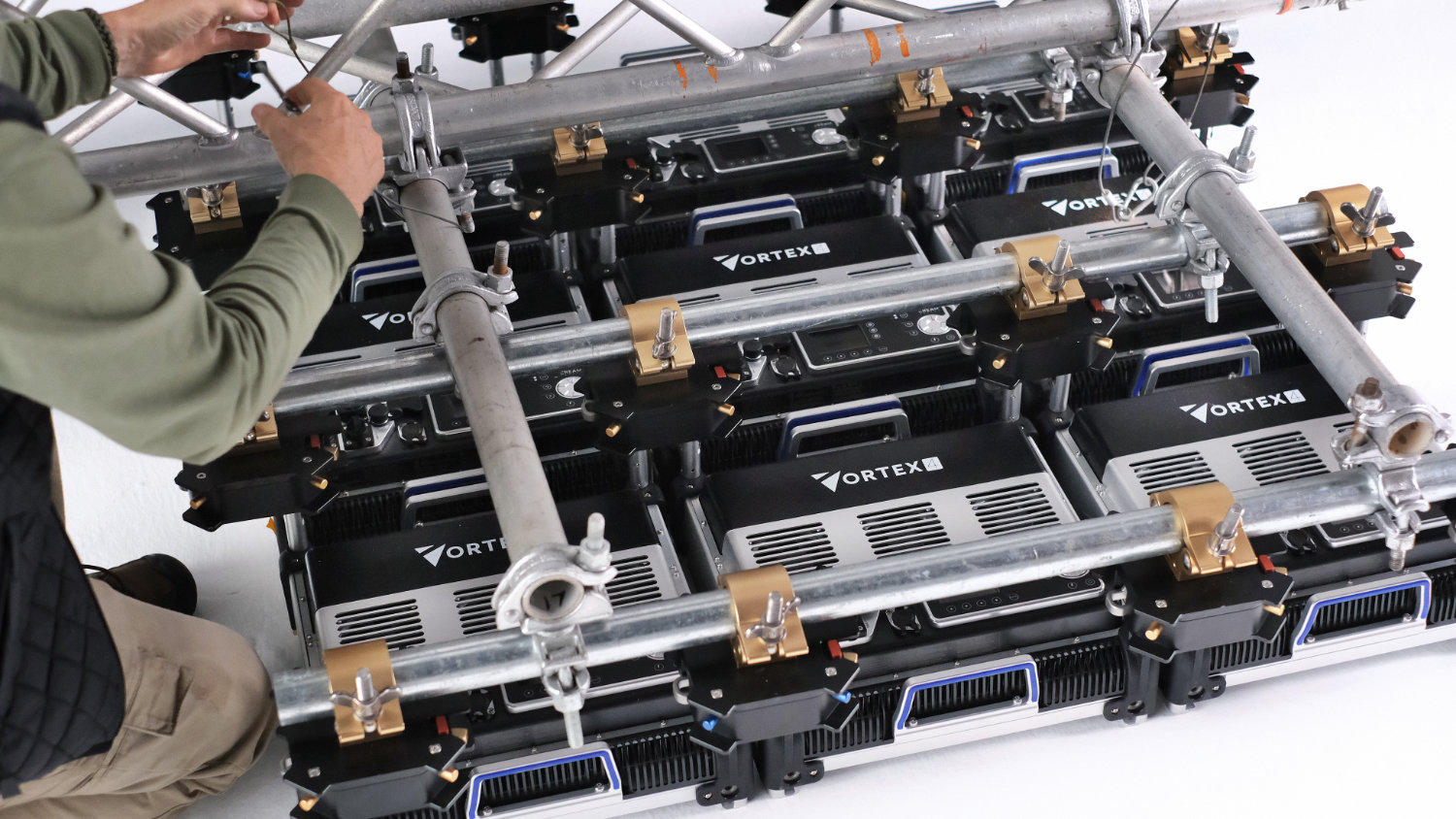

Quickly assemble uniform/aligned arrays of Vortex fixtures with minimal gap between units. LNX is the quick solution for creating large rigs. No alignment time, no measurement time, with tidy cable runs.

Heavy Use
LNX arrays will withstand heavy use – transport and relocation, high levels of vibration and high wind loading. Built for heavy use, indoor or extreme outdoors.

Safety First
The LNX system leverages multiple mount points, making it more robust and reliable than traditional single point fixture rigging. Multiple latches and auto-locking features ensure safety of operators and anyone under the rig at all times.

Unlimited Arrays
Build as small as two units or large arrays- limited only by your ability to lift the rig.
Vortex8 Upgrade Program
Free hardware upgrade for legacy Vortex8 owners with every purchase of the LNX system and receive the new corner block. More information will be available soon.

Nearly Finished Specifications*

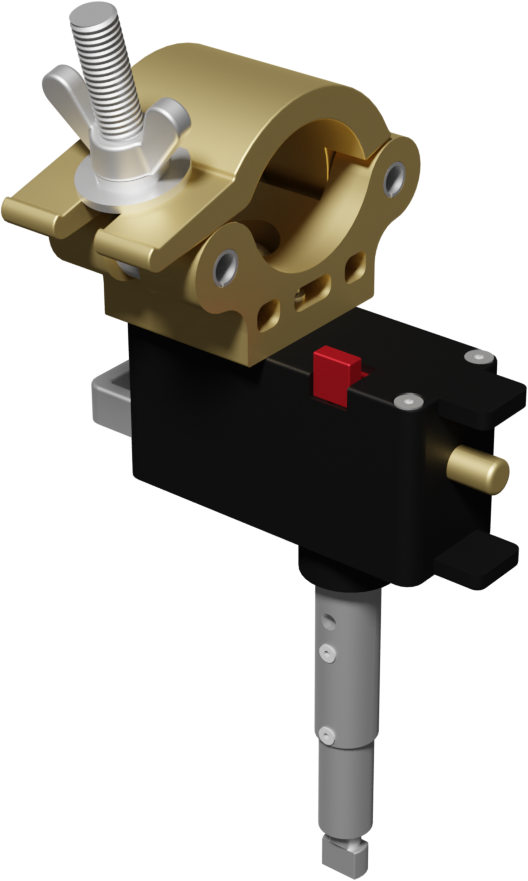

One Way Mount
Mount with 1 socket, pin not included.
Size: 165.67mm (h), 130.69mm (w), 105.55mm (d)
Weight: 1171g / 41.3oz
CS-LNX-1

Two Way Mount
Mount with 2 sockets, pins not included.
Size: 165.67mm (h), 145.94mm (w), 122.5mm (d)
Weight: 1547g / 54.57oz
CS-LNX-2

Four Way Mount
Mount with 4 sockets, pins not included.
Size: 165.67mm (h), 158.54mm (w), 147.075mm (d)
Weight: 1998g / 70.48oz
CS-LNX-4

LNX Pin
Single pin for use in the LNX mounting system.
Size: 147.5mm (h), 18.49mm (w), 18.49mm (d)
Weight: 176g / 6.2oz
CS-LNX-PIN
