Doppio+

Creamsource is a High Power LED luminaire designed for the Film and Television industries. Equally comfortable on location or in the studio, Creamsource is a truly versatile lighting tool.
A large output area creates the unique quality of ‘wrapping’ your subject in soft light, while the powerful LED engine provides intensity and throw to rival a Small HMI fixture. Only Creamsource can provide this mix of light properties in such a compact form factor.
Precision optics provide a consistent beam with naturally soft edges, while a wide selection of light control tools are available to diffuse and shape the beam to achieve the look you require.
With exceptional build quality, it has been engineered for years of reliable service. Creamsource is becoming an industry standard for lighting professionals around the world.
Highspeed capable
360W/LED
9.4kg/20.7lb
95 TLCI
One light, many applications
Capable of holding its own in many different situations, the Creamsource is at home anywhere.
A large flat panel array with unparalleled light punch creates a truly flexible fixture that lets you control how the light is shaped and moulded into many different looks and feels to create the emotion you want without hassle you don’t need.
Whether you choose to specialise or have a broad application range, we are confident you will find many new uses we haven’t even thought about yet!
- Portable Location work Including Train, Bus, Plane, or city street.
- Large scale studio setups
- TV Studio and Outside Broadcast
- Effects/ High speed Photography
- Lightning /Flash effects
- Beauty
- Food Photography
- Small houses with limited available power
- Remote locations whenever the pressure is on it gives you very quick set-ups on battery power when AC power is not available, difficult or takes too much time run.
An industry standard for lighting professionals around the world.
An industry standard for lighting professionals around the world.
Product Specifications
CRI | Typical 95, minimum 90 |
TLCI | Typical 95, minimum 90 |
Tilt Angle | 170° (Up), 80° (Down) |
Beam Angle, SPOT Lens | 13° (Half Peak Angle) |
Mounting | 28mm Spigot, 5/8th Socket Adapter |
Yoke | Removable (Quick Release System). Pole Operated Yoke Available on Request |
Filter Rails | 2 Filter Rails for Secondary Lenses and Gels |
User interface | High Precision Digital Rotary Encoder, 4 Button Keypad, Graphic LCD Display |
Control | On-Board Interface, 5 Pin DMX In and Thru, Wired Remote Control |
Dimming | 0-100%, Continuous |
High Speed Capability | Over 1000fps Flicker Free in High Speed Mode |
Synchronization | Sync Input for Triggering and Syncing to Camera Shutter |
MaxAmbient Temperature Cooling |
40°C |
Cooling | Passive (Silent) |
Estimated LED Lifespan | 50,000hrs (L70) |
Input (Fixture) | 24-32V DC, Max 14.6A, 350W |
Input (Power Supply) | 90-260V AC, 50-60Hz, Max 6.0A |
Protection Class | IP20 |
Weight | 9.4kg / 20.7lbs (Including Yoke) |
Dimensions Fixture Only |
654 x 332 x 100 mm / 26.5″ x 13.5″ x 4″ |
Dimensions with yoke | 770 x 455 x 100mm / 30″ x 18″ x 4 “ |
Warranty | 2 Years on Fixtures, 12 Months on Accessories |
Certifications |
CE, FCC, C-Tick. Pending: ETL, CSA |
Downloads
- Doppio Cutsheet
Download Now - Combined DMX Tables for all Creamsource Products
Download Now

Doppio+ Pro:
- Outsight Creamsource Doppio+ Bender 1×2 LED Panel
- 450W Power Supply for Creamsource Mini Doppio LED Panels
- Creamsource Micro Power Supply Lead (9.8′)
- Creamsource Standard yoke for Doppioi
- Creamsource 60-Degree Medium-Wide Angle Holographic Lens for Mini
- IEC US Power Cable
- Creamsource Gel Frame for Doppio (Empty)
- Creamsource Soft Padded Case with Rigid Internal Shell for Doppio
- Creamsource DoPchoice Snapbag Softbox for Doppio

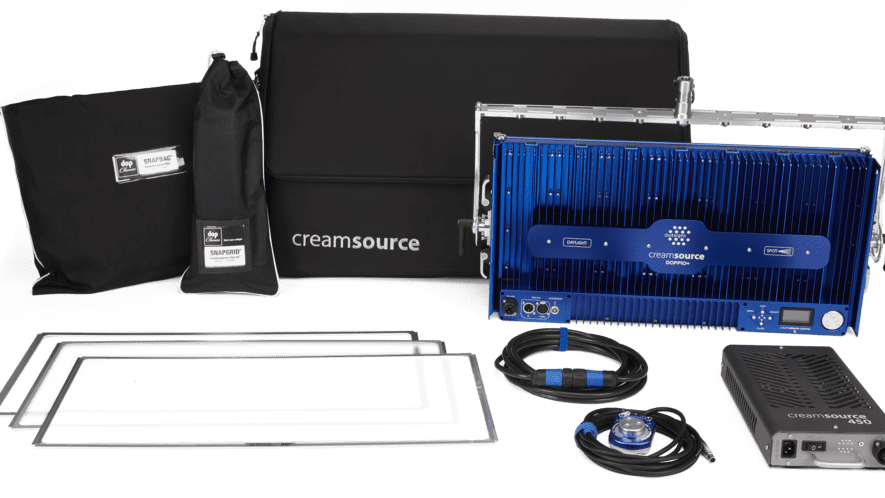

Doppio+ Gaffer:
